Route Summarization

Konfigurasi interface Router 1



         --- System Configuration Dialog ---
Continue with configuration dialog? [yes/no]: no

Press RETURN to get started!

Router>ena
Router#conf t
Enter configuration commands, one per line.  End with CNTL/Z.
Router(config)#int fa0/0
Router(config-if)#ip add 172.16.3.1 255.255.255.0
Router(config-if)#no shut

%LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up

%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up

Router(config-if)#exit
Router(config)#int se2/0
Router(config-if)#ip add 172.16.2.1 255.255.255.0
Router(config-if)#no shut

%LINK-5-CHANGED: Interface Serial2/0, changed state to up

Router(config-if)#exit
Router(config)#
%LINEPROTO-5-UPDOWN: Line protocol on Interface Serial2/0, changed state to up


Konfigurasi interface Router 2

     --- System Configuration Dialog ---
Continue with configuration dialog? [yes/no]: no

Press RETURN to get started!

Router>ena
Router#conf t
Enter configuration commands, one per line.  End with CNTL/Z.
Router(config)#int fa0/0
Router(config-if)#ip add 172.16.1.1 255.255.255.0
Router(config-if)#no sh

%LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up

%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up

Router(config-if)#exit
Router(config)#int se2/0
Router(config-if)#ip add 172.16.2.2 255.255.255.0
Router(config-if)#clock rate 64000
Router(config-if)#no sh

%LINK-5-CHANGED: Interface Serial2/0, changed state to up

Router(config-if)#exit
Router(config)#
%LINEPROTO-5-UPDOWN: Line protocol on Interface Serial2/0, changed state to up

Router(config)#int se3/0
Router(config-if)#ip add 192.168.1.2 255.255.255.0
Router(config-if)#clock rate 64000
Router(config-if)#no sh

%LINK-5-CHANGED: Interface Serial3/0, changed state to down
Router(config-if)#
Router(config-if)#exit
Router(config)#



Konfigurasi Interface Router 3



         --- System Configuration Dialog ---

Continue with configuration dialog? [yes/no]: no


Press RETURN to get started!



Router>ena
Router#conf t
Enter configuration commands, one per line.  End with CNTL/Z.
Router(config)#int fa0/0
Router(config-if)#ip add 192.168.2.1 255.255.255.0
Router(config-if)#no shut

%LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up

%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up

Router(config-if)#exit
Router(config)#int se2/0
Router(config-if)#ip add 192.168.1.1 255.255.255.0
Router(config-if)#no sh

%LINK-5-CHANGED: Interface Serial2/0, changed state to up

Router(config-if)#exit
Router(config)#
%LINEPROTO-5-UPDOWN: Line protocol on Interface Serial2/0, changed state to up


Konfigurasi Host 1
Konfigurasi Host 2
Konfigurasi Host 3
Konfigurasi Static Routing
Router 2

Router>
Router>ena
Router#conf t
Enter configuration commands, one per line.  End with CNTL/Z.
Router(config)#ip route 172.16.3.0 255.255.255.0 se2/0
Router(config)#ip route 192.168.2.0 255.255.255.0 se3/0
Router(config)#exit

%SYS-5-CONFIG_I: Configured from console by console
Router#

Route summarization
router 1


Router>ena
Router#conf t
Enter configuration commands, one per line.  End with CNTL/Z.
Router(config)#
Router(config)#ip route 192.168.0.0 255.255.252.0 se2/0
Router(config)#ip route 172.16.0.0 255.255.252.0 se2/0
Router(config)#exit

%SYS-5-CONFIG_I: Configured from console by console
Router#

Router 3

Router>ena
Router#conf t
Enter configuration commands, one per line.  End with CNTL/Z.
Router(config)#ip route 172.16.0.0 255.255.252.0 se2/0
Router(config)#exit

%SYS-5-CONFIG_I: Configured from console by console
Router#



Cara Menghitung route summarization
Routing table
Router 1
Router 2
Router3

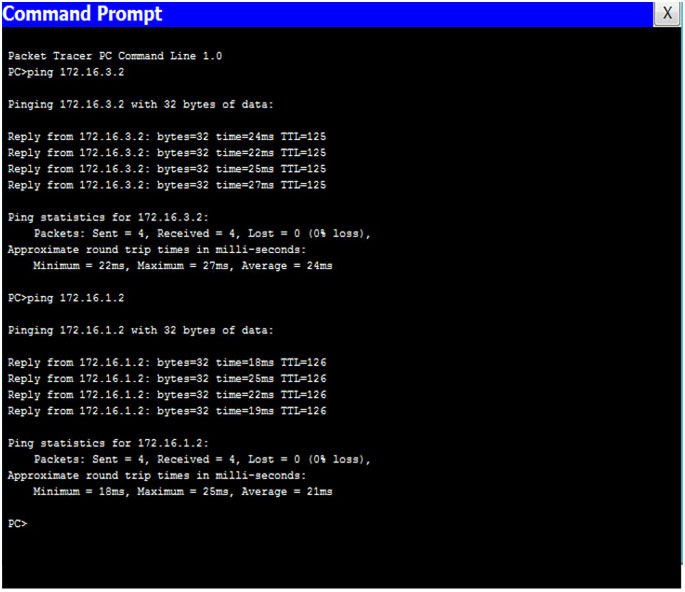

Hasil pengujian dengan ping
PC 1 ke Pc 2 dan Pc 3
PC 2 ke Pc 1 dan Pc 3
PC 3 ke Pc 1 dan Pc 2
